When one thinks of underground infrastructure installations with reduced environmental impact and potential cost savings, Horizontal Directional Drilling (HDD) is the first thing that comes to mind. HDD is a marvel of modern engineering that allows for installing pipelines, cables, and conduits beneath the ground with minimal surface disruption.
However, there exists a complex network of utilities beneath the surface that need careful navigation. To ensure a safe and efficient process, it’s essential to integrate techniques like non-destructive digging Sydney services and potholing utilities to verify underground utility lines.
Let’s dive into the essential details to help you understand how to safely engage in HDD while avoiding underground hazards.
How Does Horizontal Directional Drilling Work?
Horizontal Directional Drilling is a trenchless method used to install pipes, cables, and utilities beneath the earth without digging up large sections of the surface. This approach is particularly valuable in urban environments where roads, buildings, and landscaping cannot be easily disturbed.
HDD involves drilling along a pre-planned path under the ground, with the drill head steered to ensure the path is maintained without unnecessary detours. One of the reasons this method is highly preferred is because of its minimal impact on surface activities and the environment.
Whether you’re installing telecommunication cables or water lines, HDD ensures that you do not disrupt daily life above ground while creating underground pathways for utilities. However, it also comes with inherent risks, particularly when dealing with underground utility lines like gas, water, and electrical systems.
The Step-by-Step Process Of HDD
Horizontal Directional Drilling follows a structured process divided into three main stages:
Step 1: Drill the Pilot Bore

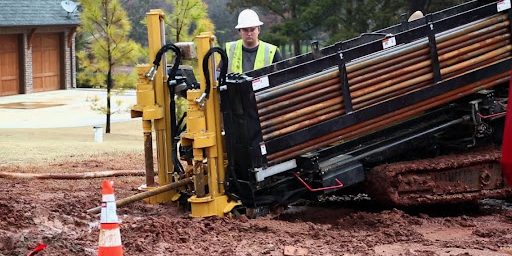

The HDD machine operator initiates the process by guiding the drill stem and head along the designated drill path, from the entry point to the reception pit. A tracker with a handheld tracking device monitors the operation, ensuring the operator stays on course and avoids underground utilities. Drilling fluid is pumped through the drill head to reduce friction, stabilise the bore, and remove cuttings. Drill rods can be added or replaced as needed to extend the drill stem.
Step Two: Enlarge the Bore.
After the pilot bore reaches the reception pit, the drill head is removed and replaced with a back reamer attached to the drill stem. The back reamer is then pulled from the exit point through the pilot bore back to the entry point, enlarging the borehole. The back reamer features cutters and nozzles that release drilling fluid.
Step Three: Install Conduit/Casing:
Simultaneously with the bore enlargement, conduit or casing (the product pipe) is connected to the back reamer and pulled into the bore until it reaches the entry point. At this stage, the drill stem and back reamer are removed. Throughout the entire process, the tracker monitors progress using the handheld device, ensuring no underground utilities are struck.
While this sounds straightforward, the potential for encountering underground utilities makes it essential to take precautionary steps to avoid damaging existing infrastructure.
Being Careful Of The Underground Utility Lines
One of the biggest challenges in HDD projects is the dense network of underground utilities that crisscross the country. Gas lines, electric cables, and water pipes can be found beneath almost every street, posing a significant risk if accidentally struck during drilling operations.
To prevent costly repairs and potential safety hazards, it’s crucial to conduct a thorough investigation of the site before commencing any HDD work. By employing modern locating technology, such as ground-penetrating radar (GPR) or electromagnetic detection, project teams can create accurate underground maps that reveal the location of utility lines and other buried infrastructure. However, it is important to note that technology is only part of the solution.
How Can Potholing Help Identify Utility Lines?
Even the most accurate underground maps can leave room for error, which is why potholing utilities is a critical step in HDD projects. Potholing is a technique used to visually confirm the location of underground utilities by digging small, carefully measured holes at the points where utility lines are expected. This process helps verify the precise location and depth of the utility lines.
In many projects, non-destructive digging in Sydney services uses vacuum excavation for potholing. Vacuum excavation is a safe and effective way to expose utility lines without causing damage. The method involves using high-pressure air or water to break up the soil while a vacuum simultaneously removes the debris, leaving the utility lines intact. This visual verification is crucial for ensuring safe drilling and avoiding unintentional damage to underground infrastructure.
Safety Measures to Sidestep Underground Utilities
Safety is paramount in any HDD project, and certain measures must be taken to protect workers, the public, and existing utilities. These measures include:
Utility Mapping and Surveying:
Before drilling starts, gather as much information as possible on existing underground infrastructure. Use technology to create accurate maps and confirm utility locations with potholing.
Detailed Planning:
Plan the drilling route carefully, factoring in the location of all known utilities. Avoid drilling near sensitive utility lines unless absolutely necessary, and where it is, take extra precautions to avoid damage.
Non-Destructive Digging:
When working near critical utilities, employ non-destructive digging methods like vacuum excavation to ensure that existing infrastructure remains unharmed during the drilling process.
Real-Time Monitoring:
During the HDD process, continuous monitoring of the drill head’s position and the surrounding environment is crucial. Also, make adjustments as necessary to avoid unexpected encounters with underground hazards.
Communication:
Ensure there is open communication between the drilling team, engineers, and utility companies. In an emergency or unexpected utility encounter, a clear plan for managing the situation should be in place.
Conclusion
Horizontal Directional Drilling is an indispensable method for installing underground utilities, especially in urban settings where surface disruption needs to be minimised. However, with the complex web of gas, water, electrical, and other utility lines buried beneath the ground, it’s vital to take every precaution to avoid damaging existing infrastructure. With proper planning and employing the appropriate techniques listed above, you can ensure that your HDD project proceeds smoothly and safely.
